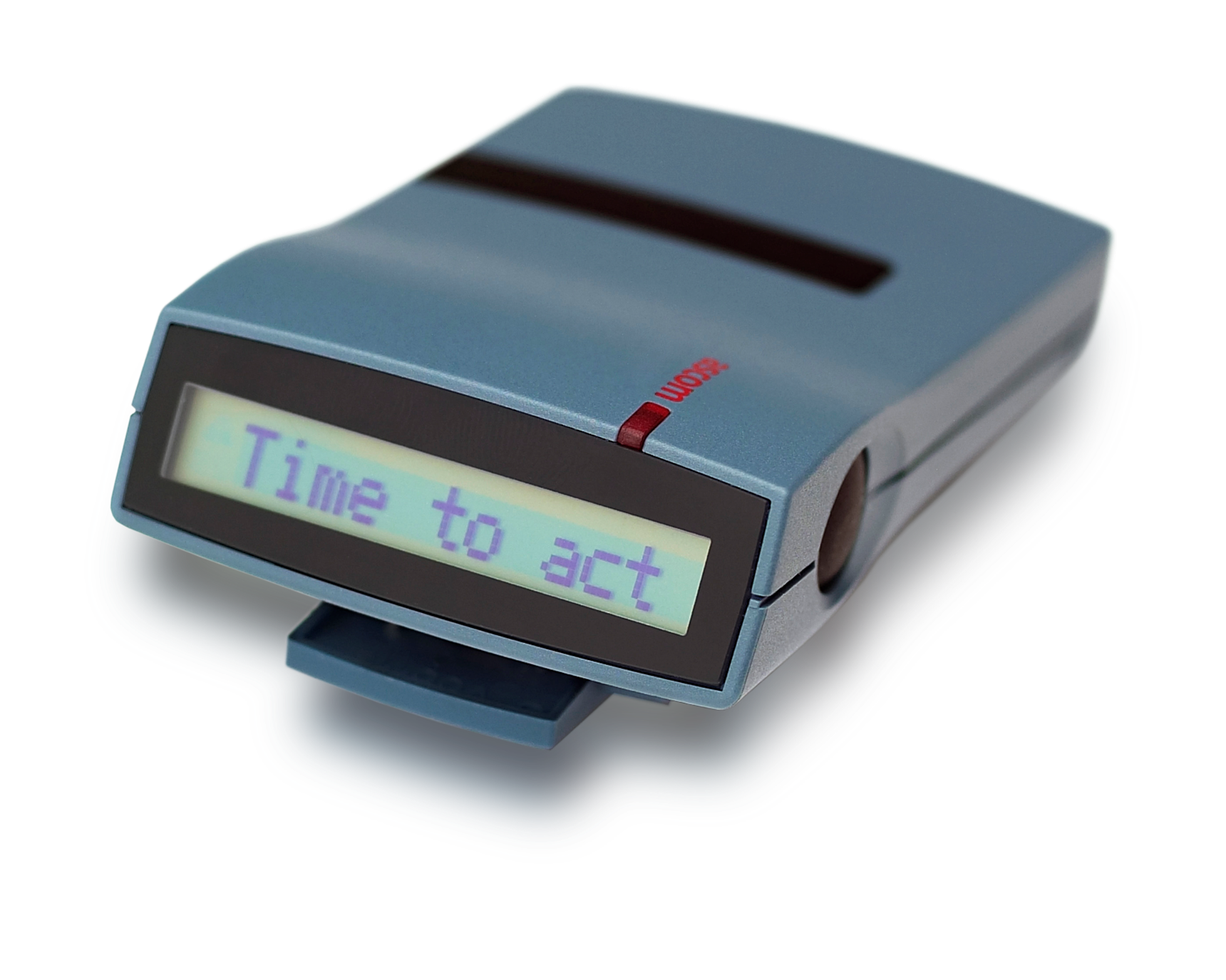

Ascom 914D

Light, easy-to-carry one-way pager with message priority indication. Top-display means messages can be read without removing the device from pockets. Available in UHF frequency band.

  • Technical specifications
  • Downloads

Standard Features
Robust and shock resistant
12 characters alphanumerical
Up to 120 characters in one message
Up to 10 messages (max. 480 characters)
Silent mode for meetings etc.
Vibrator (option)
Rechargeable battery (standard AAA sized)

Size (h× w × d):   20 mm 90 × 52 × 20 mm
Weight:   73 g incl. battery
Colors:  Steel Grey / Ice White
Display:   LCD Dot matrix
Clip:   Hinge-type (standard) or swivel-type

Advanced model includes:
Time stamp of messages
Group paging
Automatic Out of Range Indication

Operating temperature:   -10°C to +55°C
Storage temperature:   -20°C to +70°C
Enclosure protection:  IP40, EN60529
Free fall test:   IEC 60068-2-32, procedure 1. Dropped 12 times from 1 meter

List of downloads

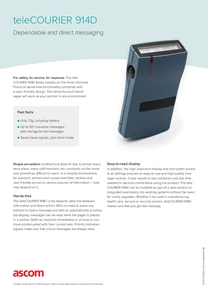

914D product sheet
914D product sheet

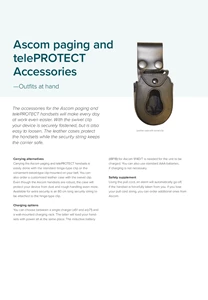

Ascom paging accessories sheet
Ascom paging accessories sheet
