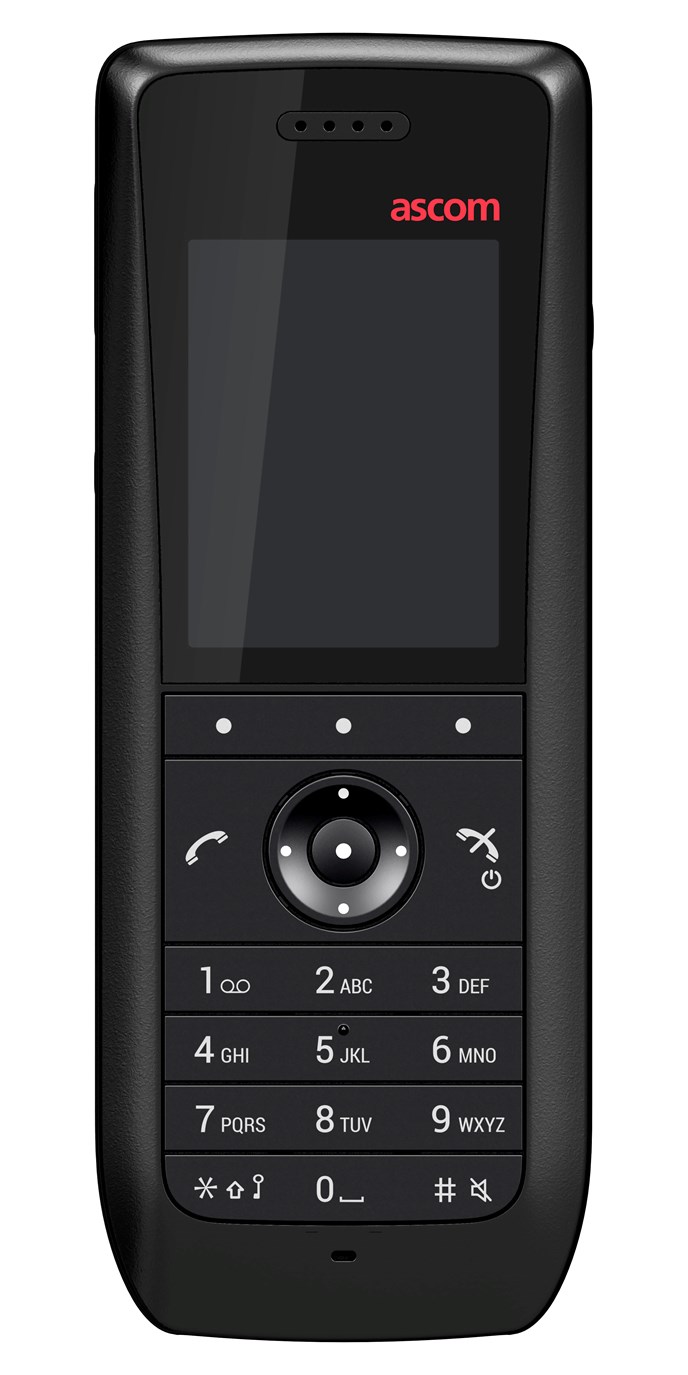

Ascom d63

The Ascom d63 comes in three models: the telephony-only Talker, the Messenger with enterprise-grade messaging, and the Protector, with an integrated personal alarm and infrared location function.

  • Technical specifications
  • Download

Robust DECT handset
Wideband audio
Bluetooth for headset
 3,5mm headset connector
IP44 classified design
Disinfection ready
Enterprise-grade voice quality
Enhanced DECT security
Push to talk (PTT)
GAP/CAP compliant
Shared phone1
Upgradeable by license
18 default languages + 1 customizable

Personal Alarm options
Push button alarm
Acoustic Location Signal (ALS)
Automatic call after alarm

Location options
Base station location
DECT beacon location (license option)
Infra-red (IR) location (HW option)

Size (h× w × d):    137 × 52 × 21 mm
Weight:    135 g (including battery and clip)

Handset: Black/White
Display (w × h):  31 x 41 mm, TFT display 262K colors. 240 × 320 pixel LCD with white LED backlight

Free fall test:
IEC 60068-2-32, procedure 1, dropped 12 times
IEC 68-2-32, procedure 2, dropped 1 000 times  from 0,5 meters.

Battery and  Charging
Speech time:  20 h
Stand-by time:  240 h
Charge time:  < 4 hours
Discharge/charge cycles:  >=80% capacity left after 400 full charge/discharge cycles.

Operating temperature:   0°C to +40°C
Storage temperature:   -20°C to +60°C

DECT frequencies
1880-1900 MHz (Europe, Africa, Middle East, Australia, New Zealand and parts of Asia)
1900-1906 MHz (Thailand)
1910-1930 MHz (South America)
1920-1930 MHz (North America
